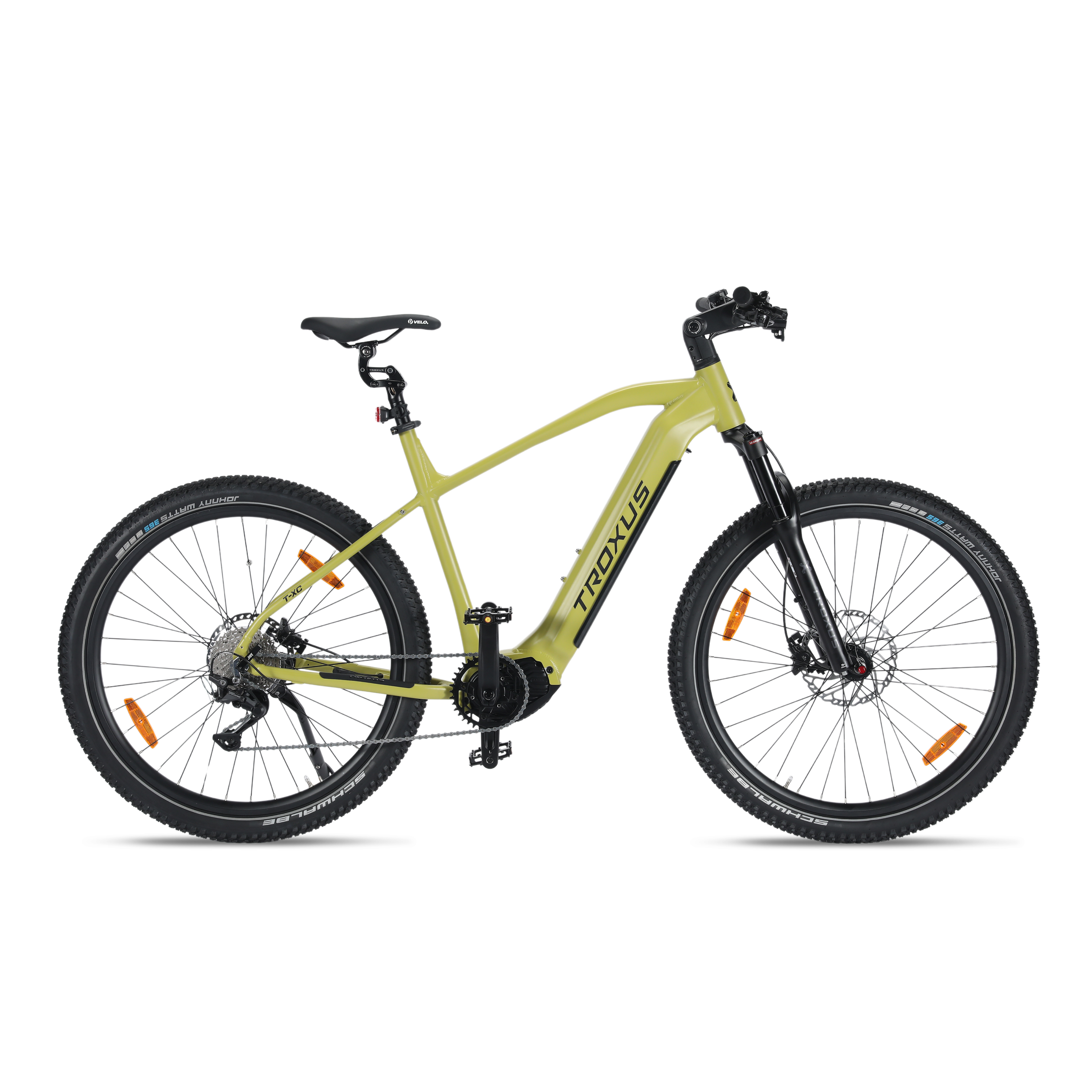

Troxus TR-MAIN green electric bike
TR-MAIN E-bike
TR-MAIN E-bike
TR-MAIN E-bike
TR-MAIN E-bike
TR-MAIN E-bike
TR-MAIN E-bike

Troxus Germany

TR-MAIN E-bike

$3,842.25
Sold out
No reviews
No reviews
Color:blue
The TR-MAIN e-bike boasts double suspension equipment and a 720 watt-hour battery capacity, ensuring smooth power assistance, allowing you to fully enjoy and expand your off-road riding capabilities. Just like the tranquil yet unstoppable flow of the Main River, the TR-MAIN electric bike is engineered for full navigability, bringing the essence of nature’s power to your ride.

25 Km/h

Max Speed

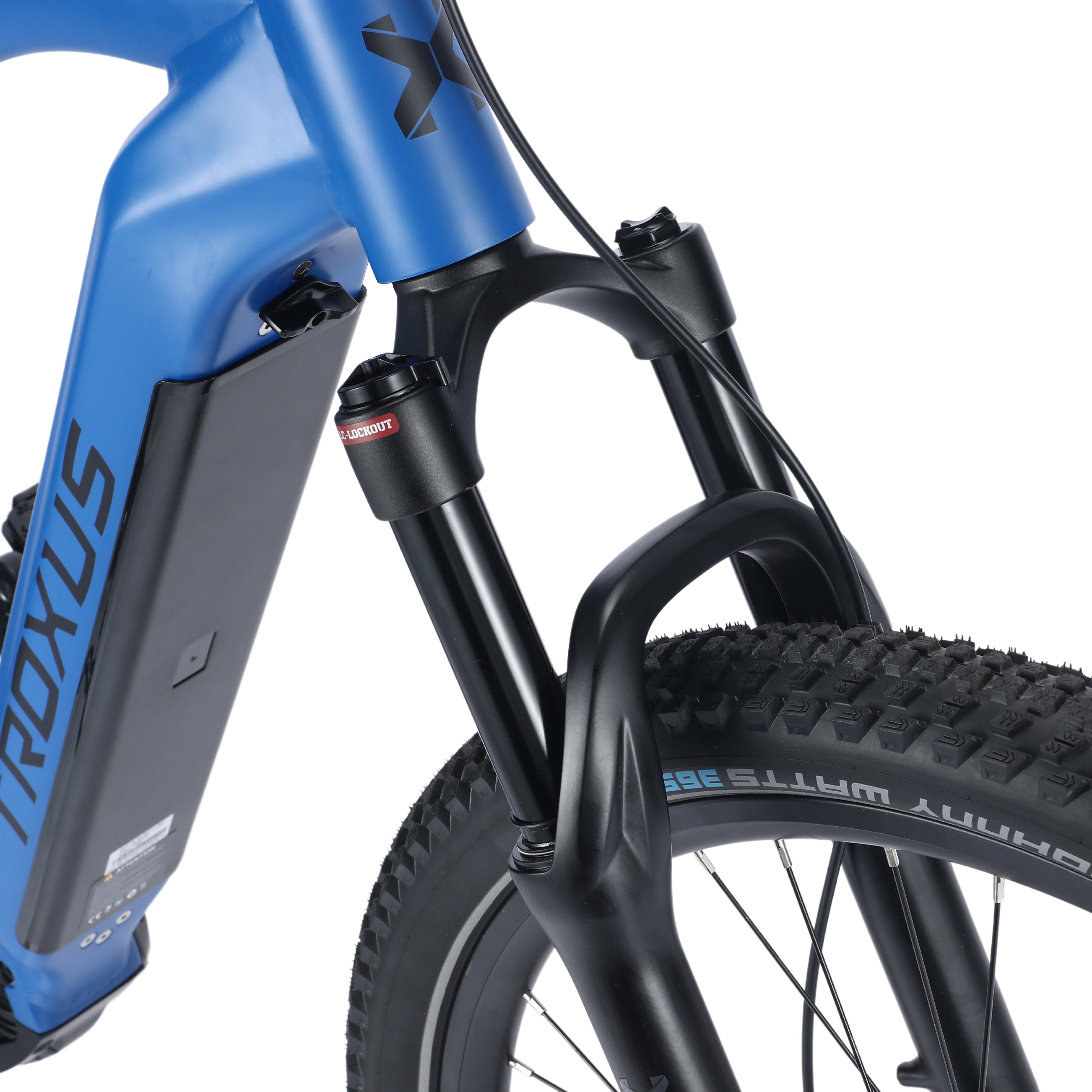

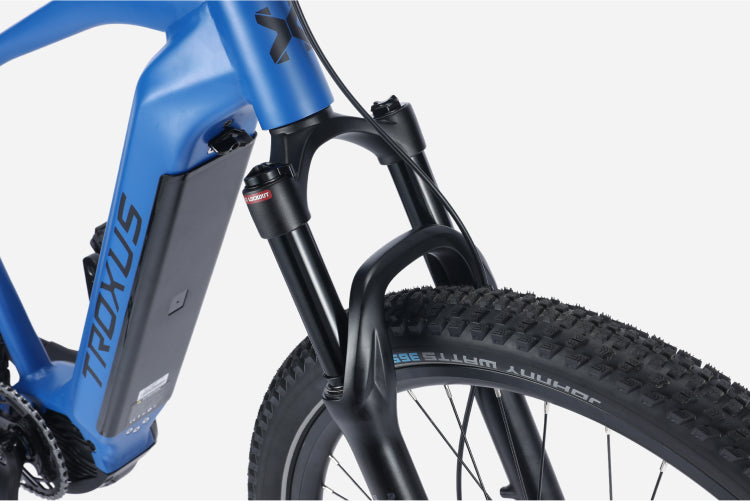

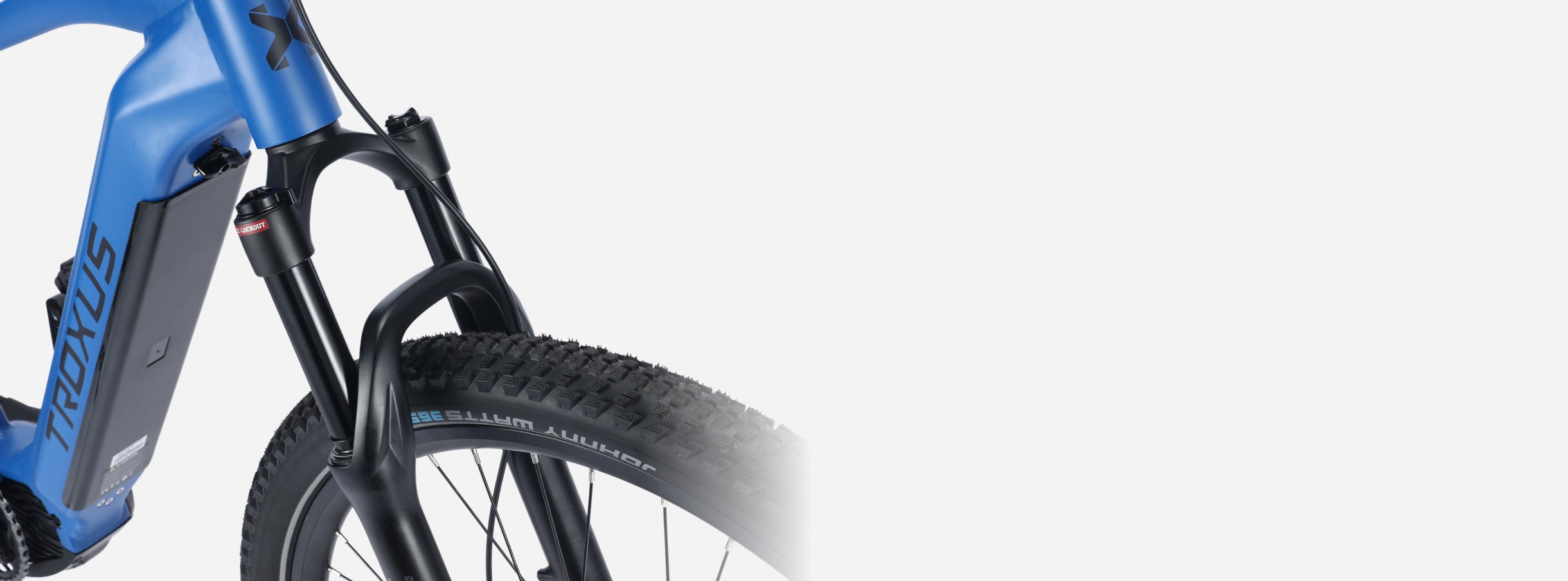

Absorb the bumps

The 120mm travel suspension fork, paired with a durable front wheel set, provides optimal control and stability. It effectively absorbs impacts from rough terrain, enhancing comfort and control in off-road or mountain biking.

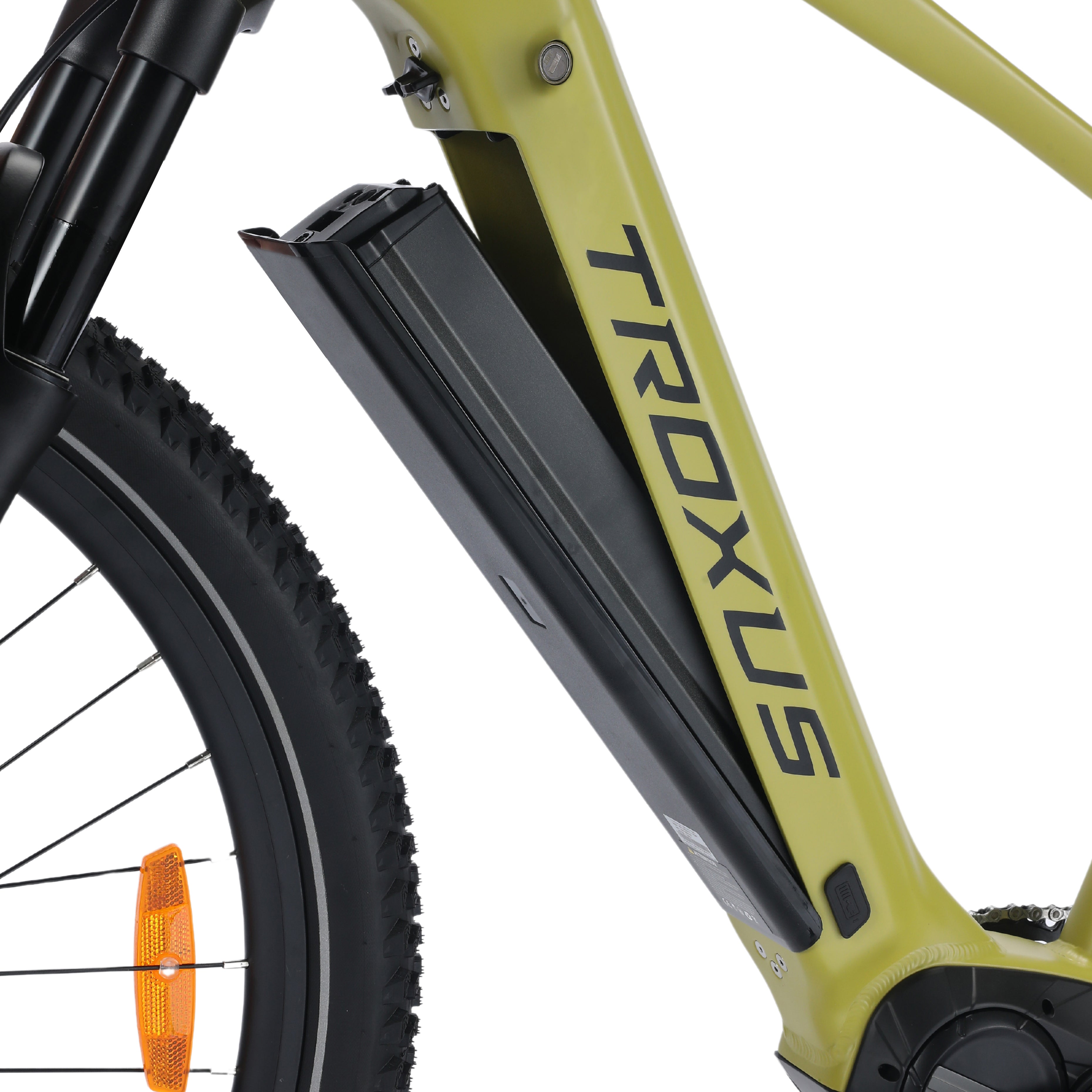

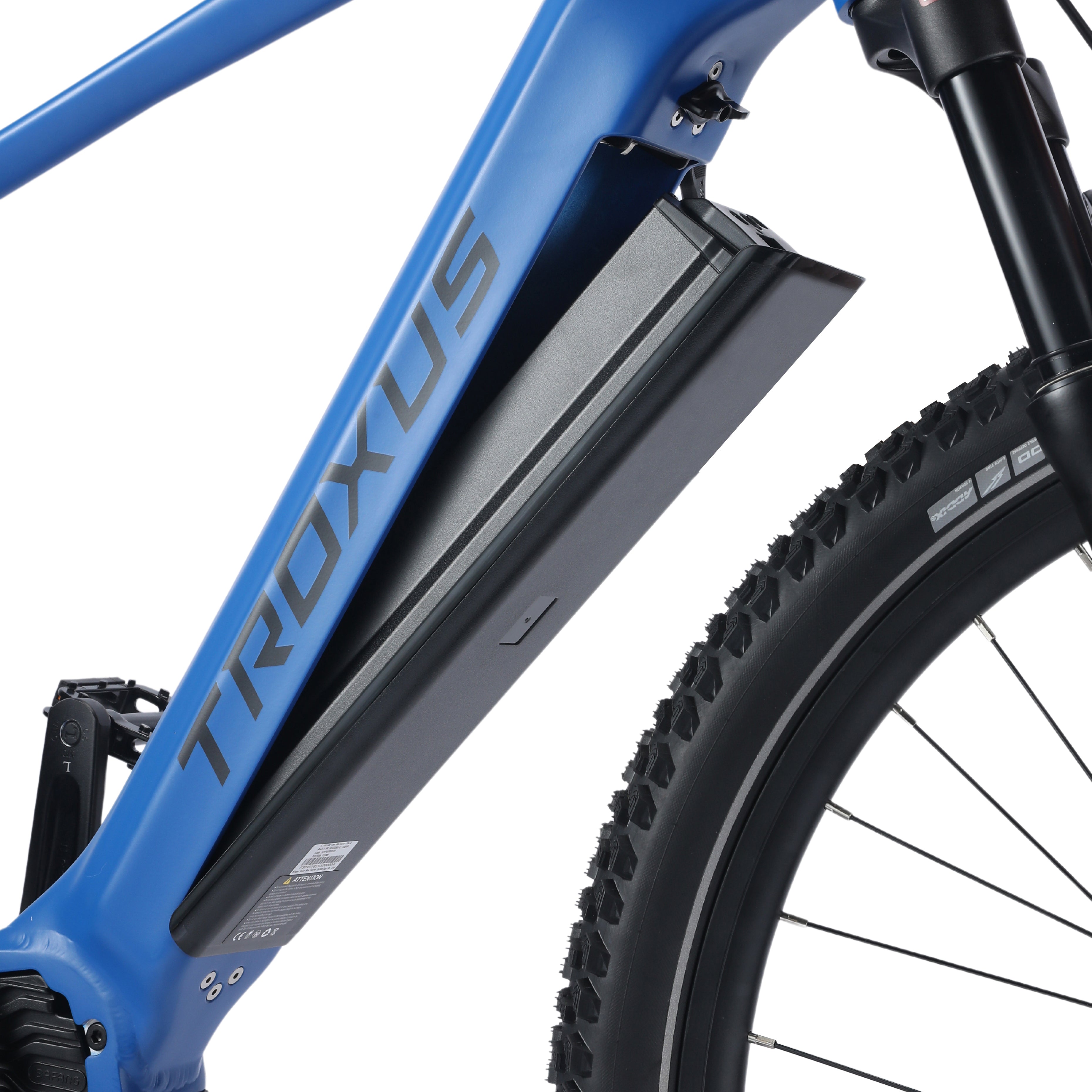

Removable 720Wh Battery

Removable 720Wh Battery with LG Battery cell on e-bikes for convenient charging and extended ride capability.

Quality Components and Craftsmanship

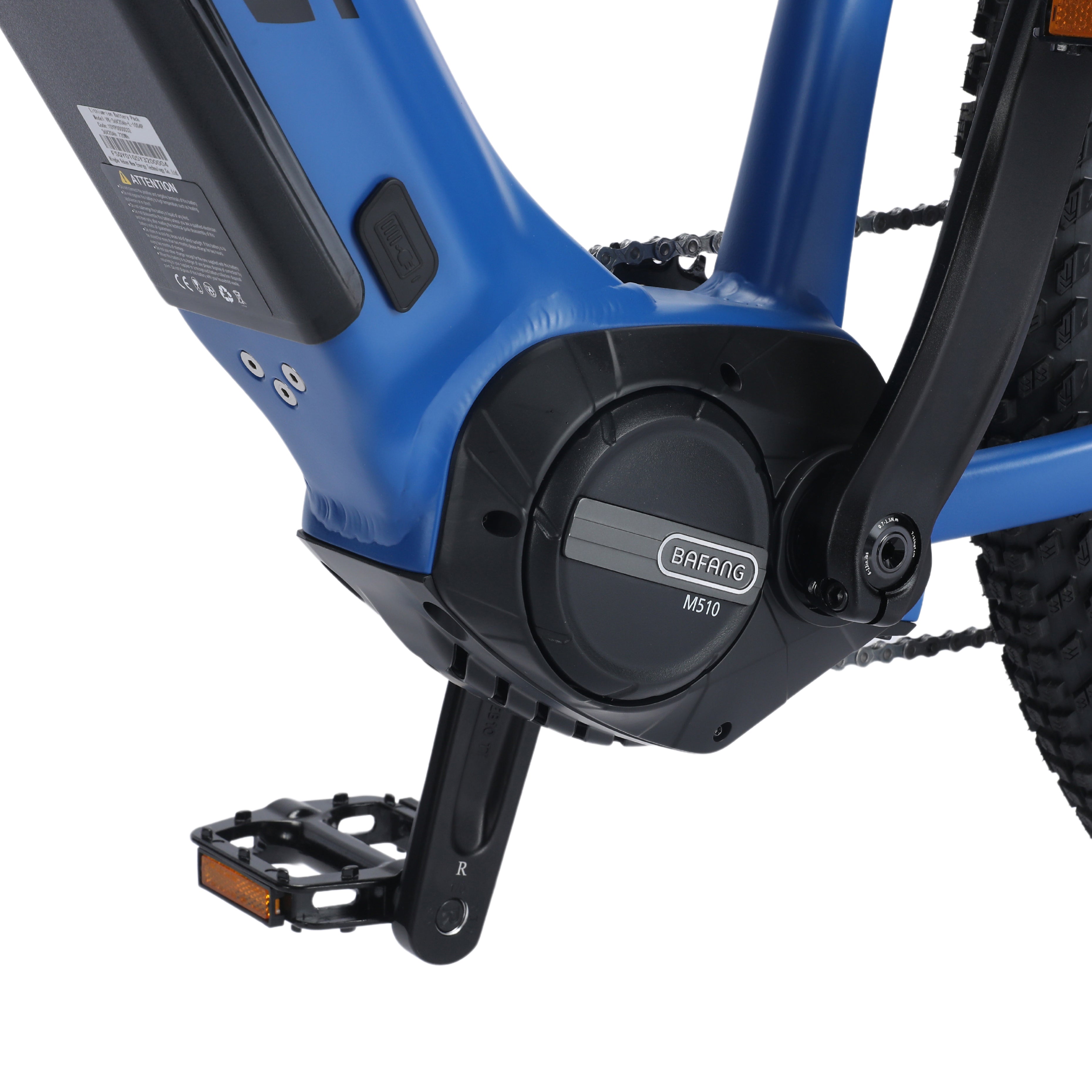

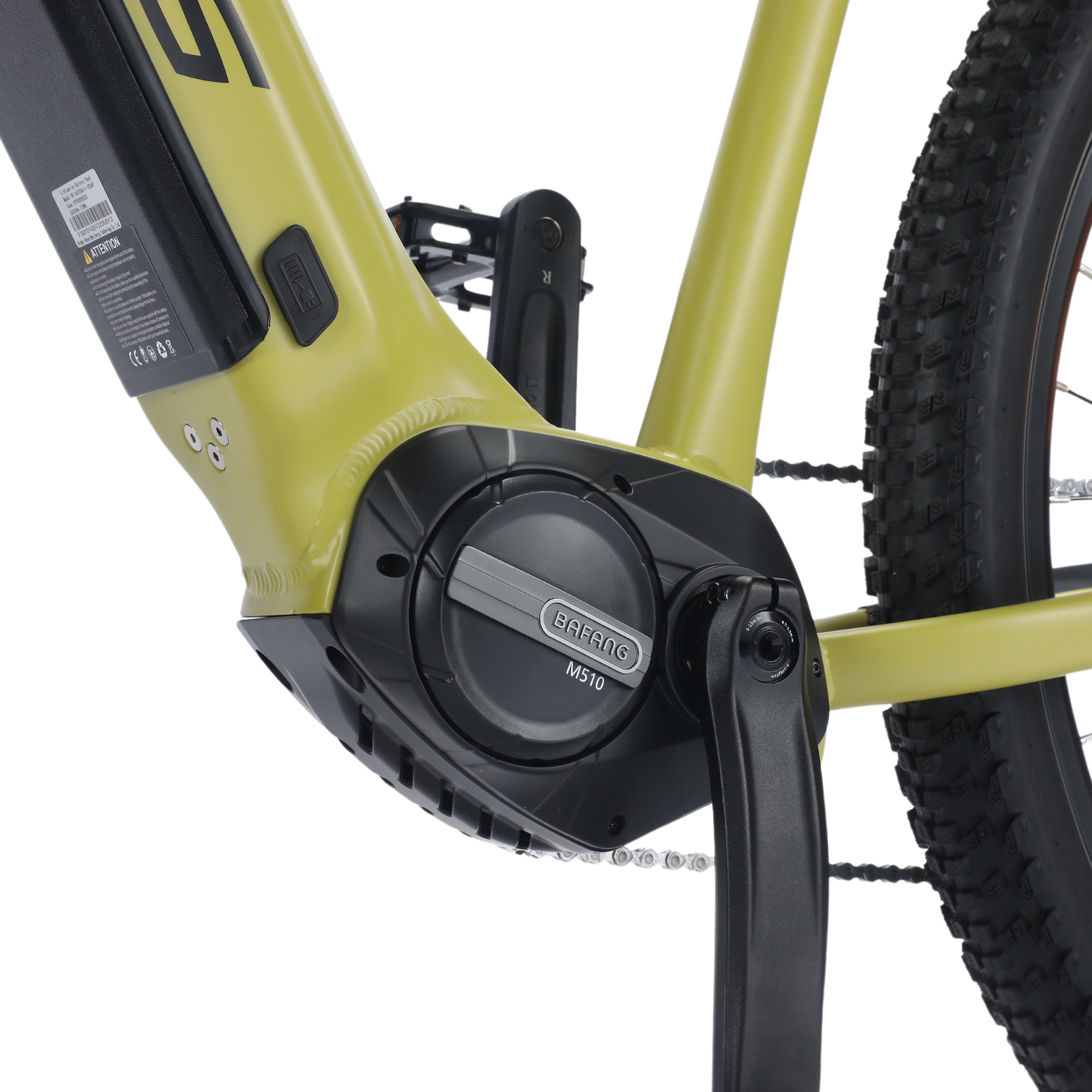

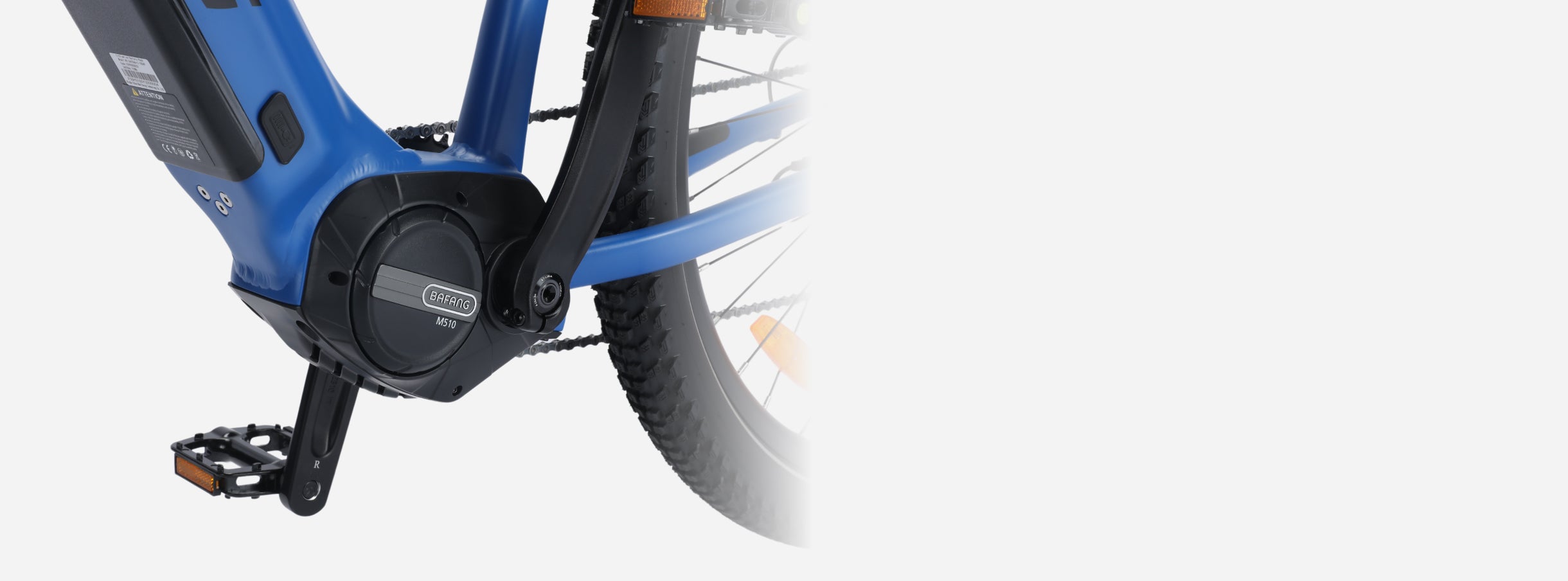

95 Nm Motor

With its robust 95 Nm, the powerful Bafang motor equipped on the Troxus EMTB provides ample strength for conquering tough terrains or meeting everyday demands with ease.

720Wh Battery

Its removable design ensures convenience and flexibility, allowing for easy charging on the go or swapping out for a spare to double your journey length.

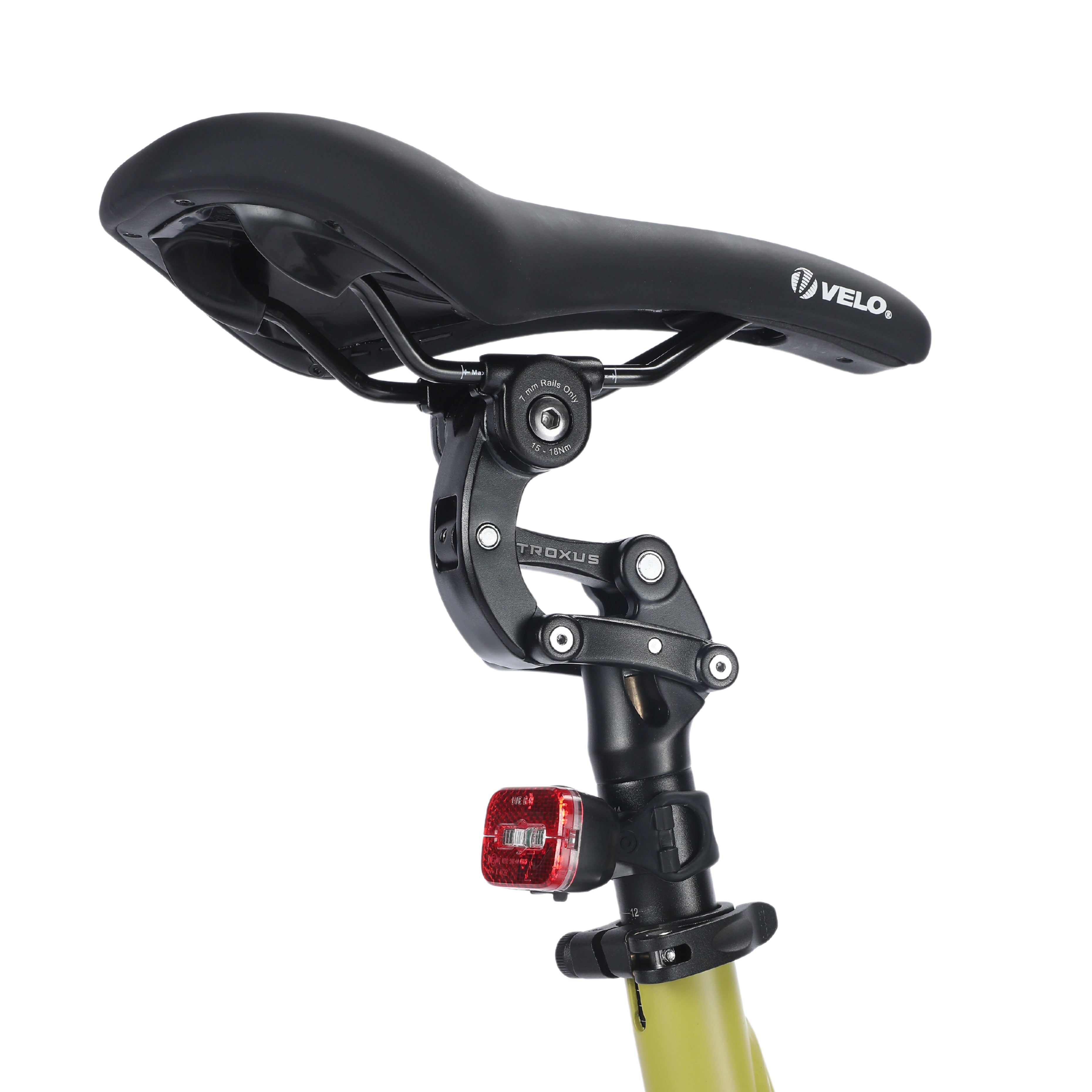

Suspension

The suspension seatpost and suspension fork help you ride smoothly over rough terrain by soaking up bumps and vibrations, providing a plush and responsive ride.

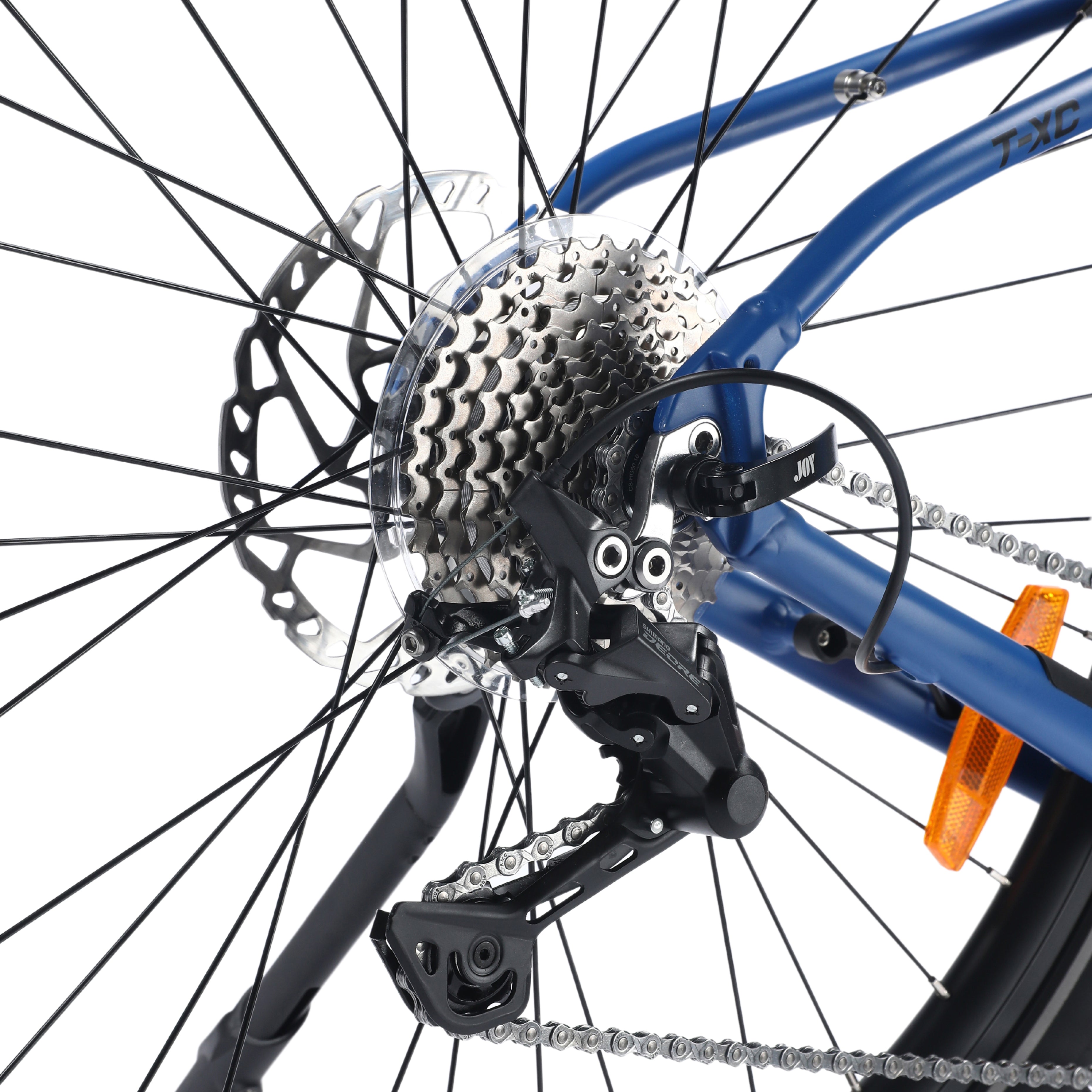

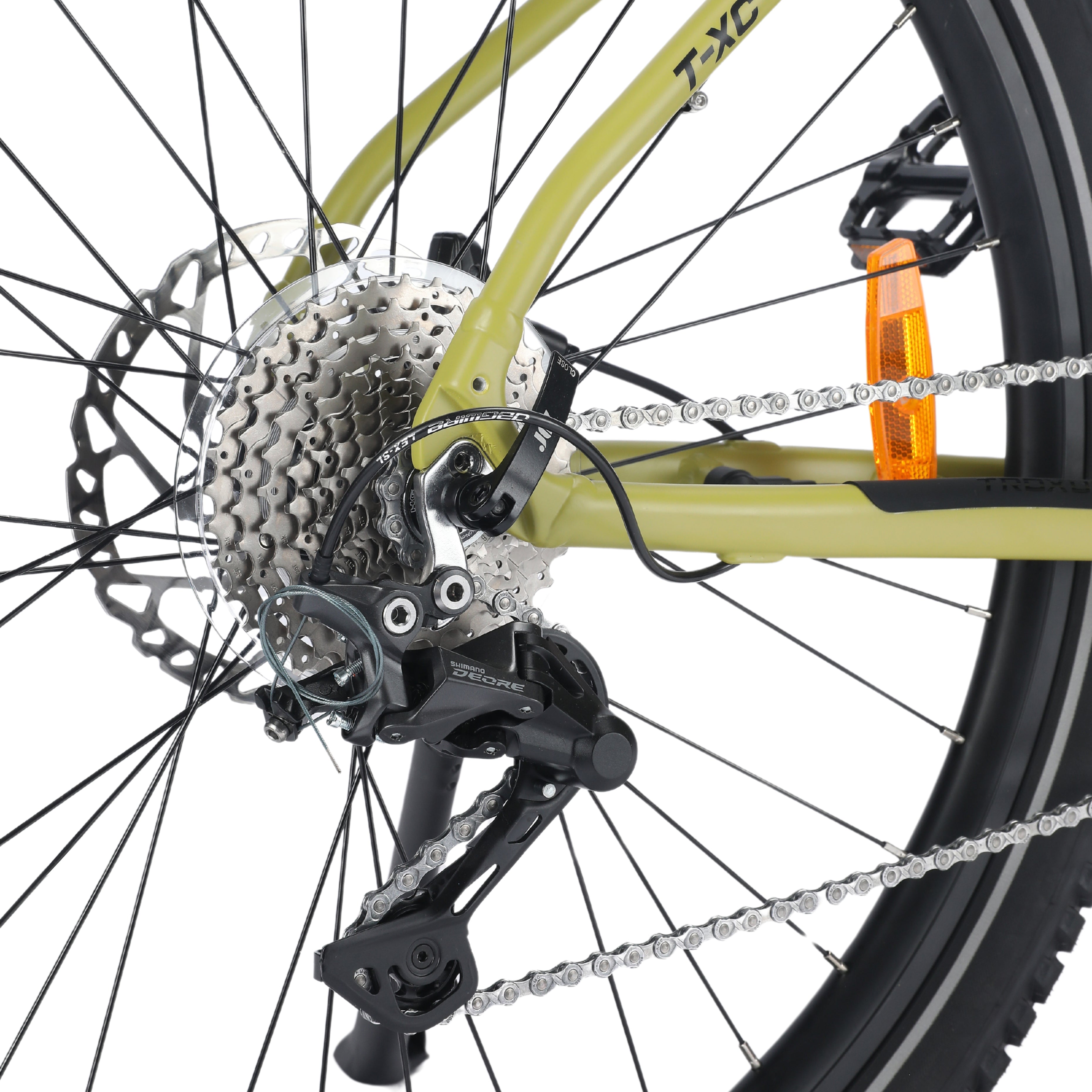

10-speed gearshift

The Shimano 10-speed chain transmission allows you to easily adjust the pedaling resistance to match the demands of the terrain you are traversing.

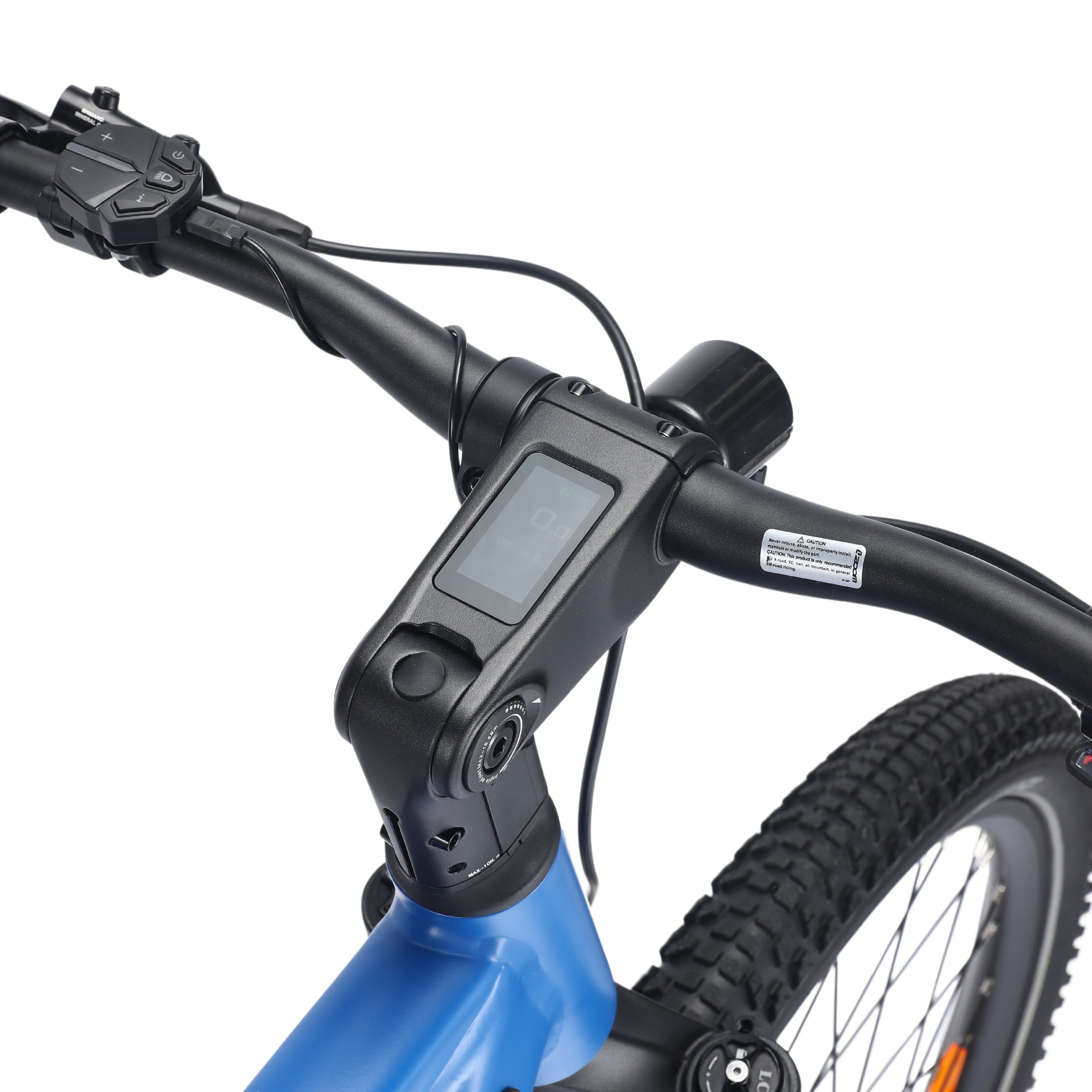

Integrated display

This 9.5-inch TFT color screen display has a hidden integrated wire harness to avoid clutter. Paired with our angle-adjustable stem, it provides a user-friendly design for diverse customer needs.

Find A Dealer Near You?

Stop by our local dealerships and get firsthand experience with our bikes.

Find A Dealer

Specification

Frame

Aluminum 6061

Wheelsize

29"x2.35“

Travel

120mm

Gears

10 speed
Motor

Bafang® 36V 250W/ 15 MPH. 95Nm

Battery

36V/20Ah (720Wh) with LG® Cells

Display

Color Display, Bluetooth

Charger

3A/100-240V Input/ 42V Output
Fork

Front Suspension Fork, 120mm Travel

Brake(f)

Shimano®BL-M4100  Hydraulic

Brake(r)

Shimano®BL-M4100  Hydraulic

Brake disc (f/r)

203/180mm
Tires

Schwalbe JOHNNY WATTS 365

29"x2,35,w/Reflective Stripes

Rims

Alloy Double Wall , 36H, 29"x2.3"

Hub front

Alloy, 36H, 100mm

Hub front

Alloy, 36H, 145mm, M10, quick release
Handlerbar

Zoom@ Alloy, 31.8mmx720mm,9 Backsweep

Grips

Ergonomic Comfort

Stem

Alloy, Forged, Adjustable, Ext. 100mm

Headset

Threadless, Internal 1-1/8"

Saddle

VELO Comfort

Seat post

Troxus w/ Suspension, Alloy 30.9x365mm, Adjustable

Pedals

Alloy, 9/16"axles, w/ BS reflectors
Perm. total weight

32KG

Bike weight

25KG
TR-ELBE S

5'2" - 5'6"

TR-ELBE M

5'6" - 5'10"

TR-MAIN S

5'7" - 5'11"

TR-MAIN M

5'9" - 6'3"

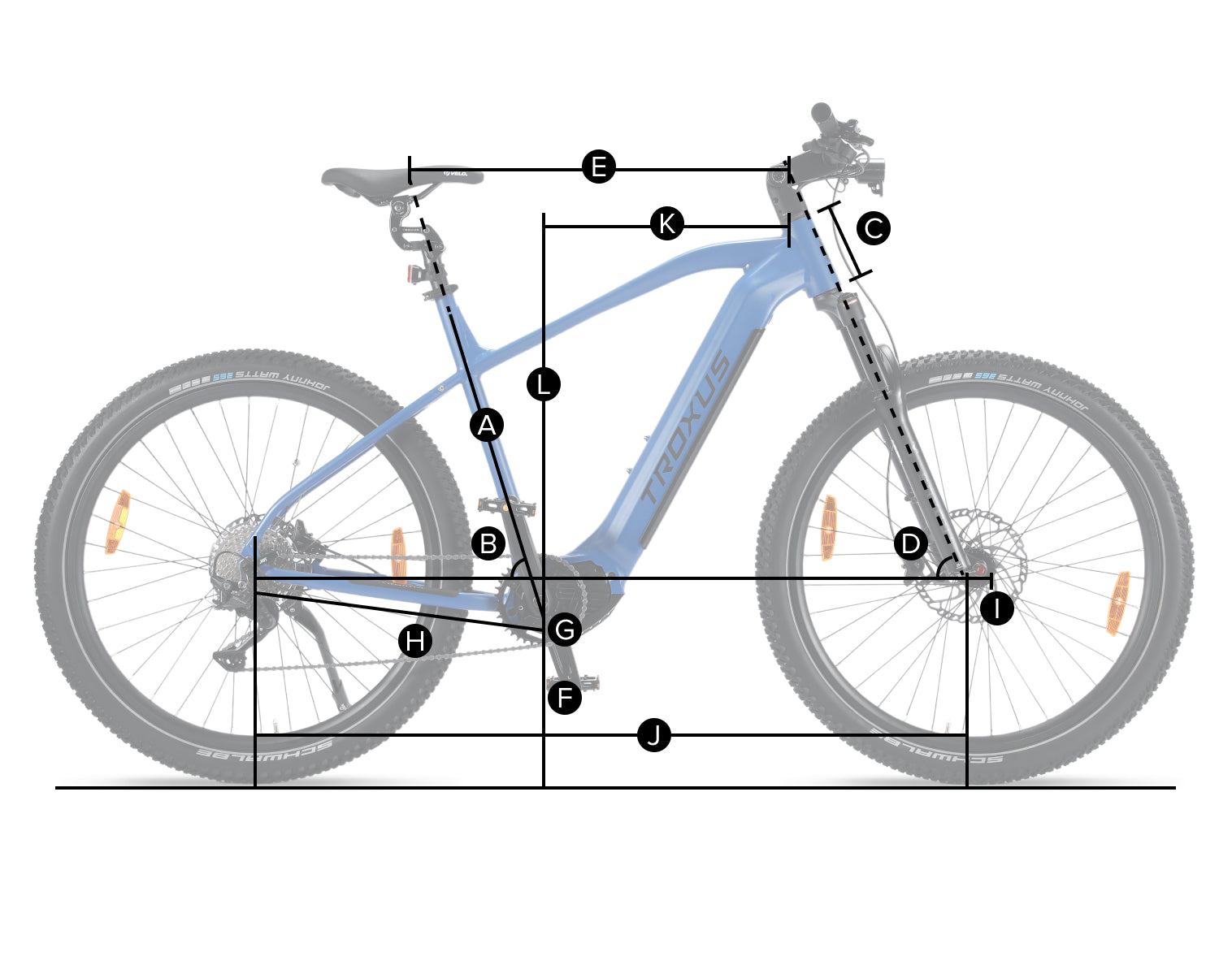

Model

S

M

Frame Size

19"

22"

Wheel size

29"*2.35

29"*2.35

A — Seat tube length

483

560

B — Seat tube angle

73

72

C — Head tube length

127

132

D — Head tube angle

66.5

66.5

E — Effective top tube length

629

645

F — Bottom bracket height

315

315

G — Bottom bracket drop

60

60

H — Chainstay Length

495

495

I — Fork offset

50

50

J — Wheelbase

1232

1237

K — Frame reach

430

433

L — Frame stack

648

652
