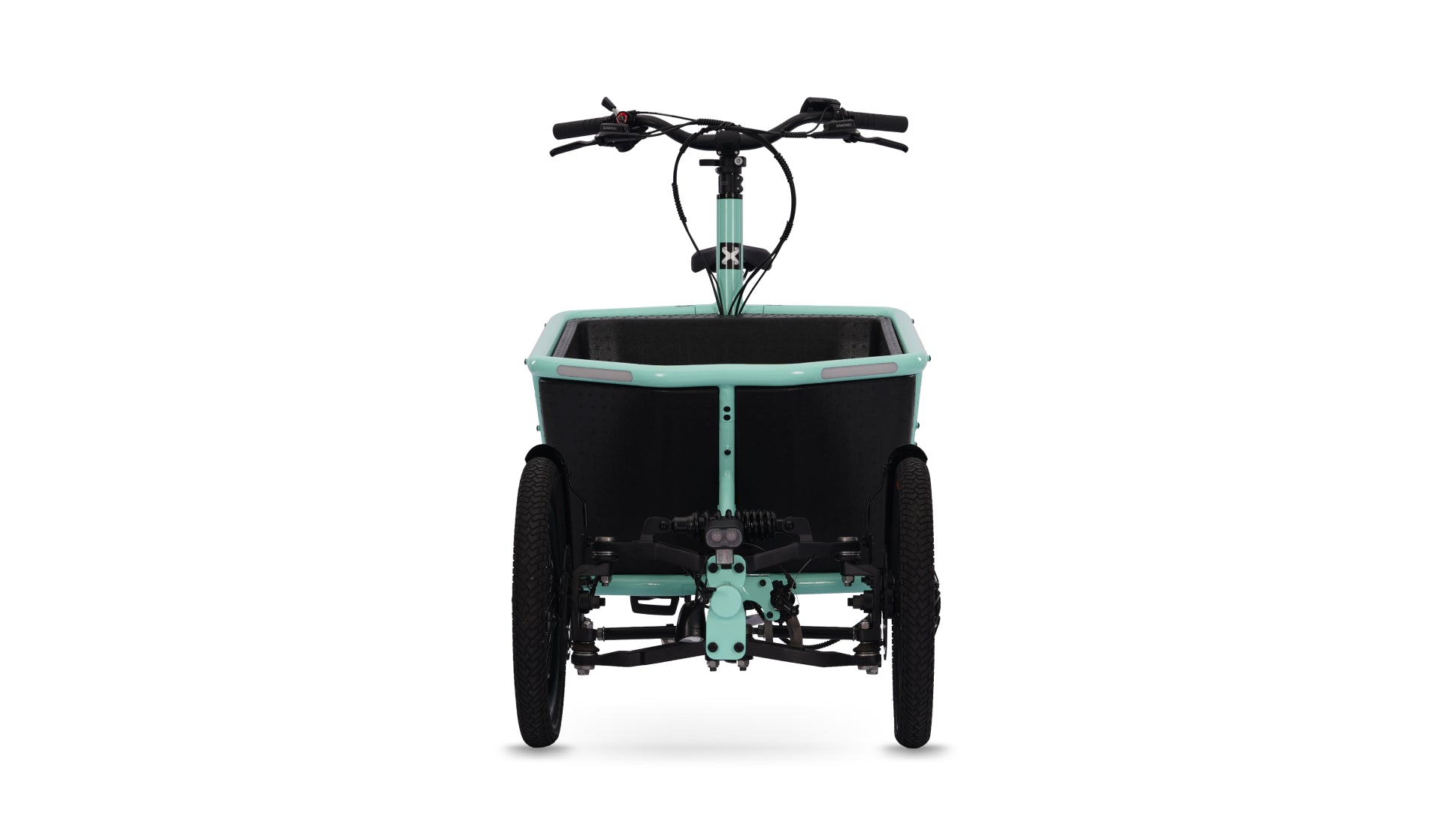

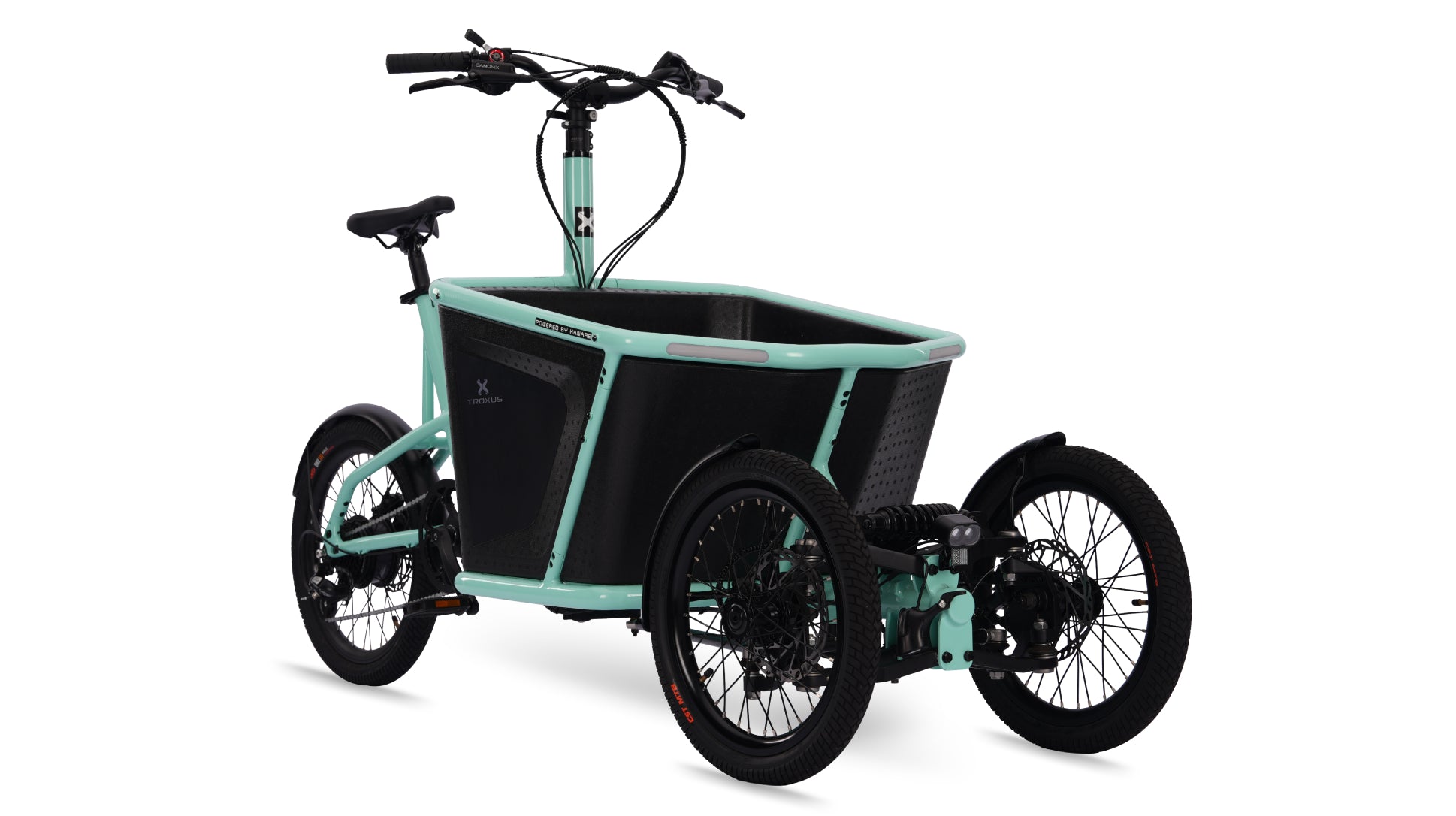

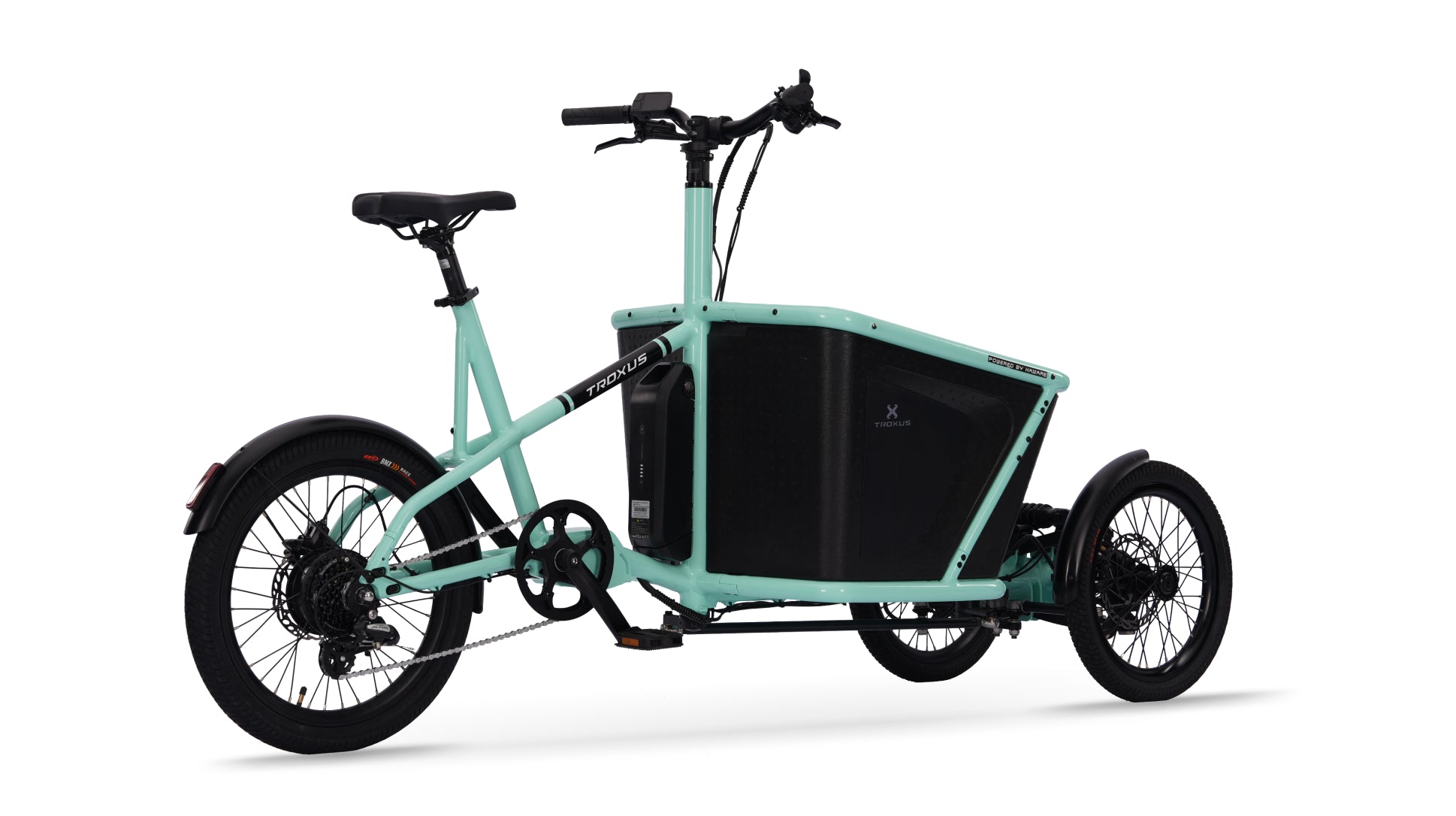

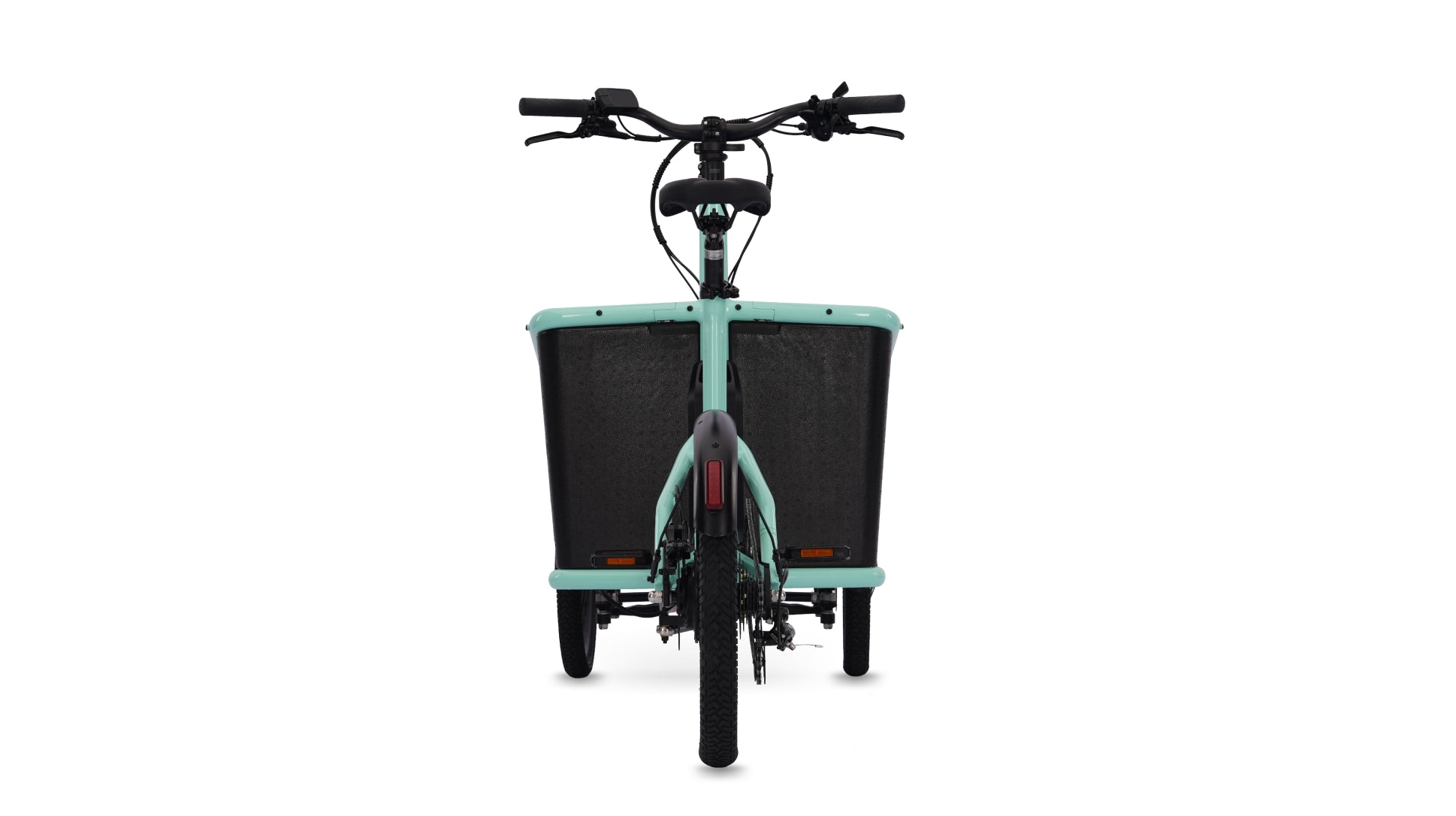

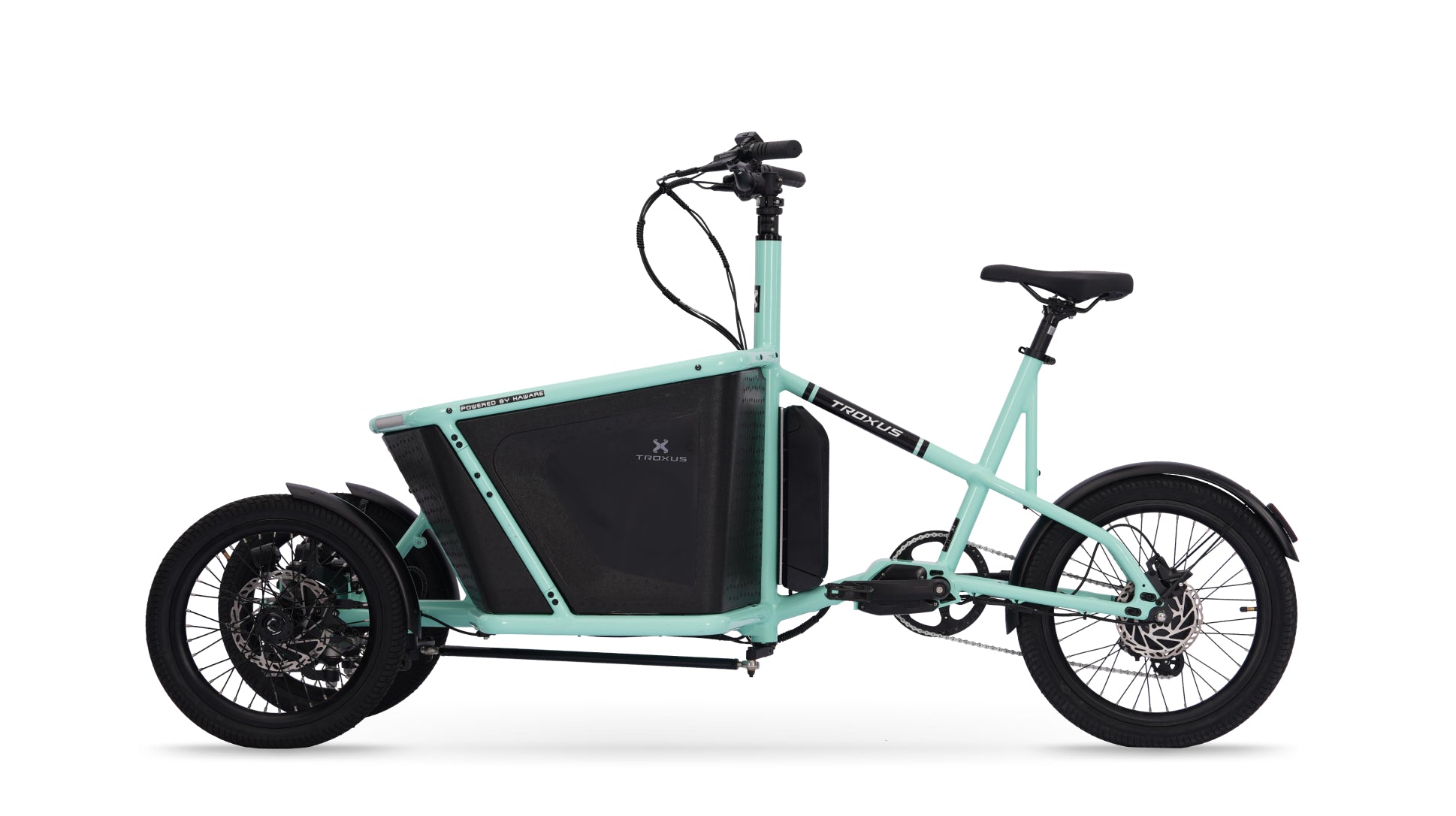

Carvo 04 SE
Introducing Carvo 04 SE
The Carvo 04 SE is a practical and accessible electric cargo bike built for everyday urban cargo runs and family use. Powered by an Ananda 350W rear hub motor and a Shimano 7-speed chain drivetrain, it offers a reliable and affordable cargo solution for city riders. The aluminum double A-arm front suspension and 18"/20" CST tires deliver a stable, comfortable load-carrying experience. DIN79010 certified for the European market.
250W
Motor Power
47kg
Net Weight
25km/h
Max Speed
~100km
Max Range

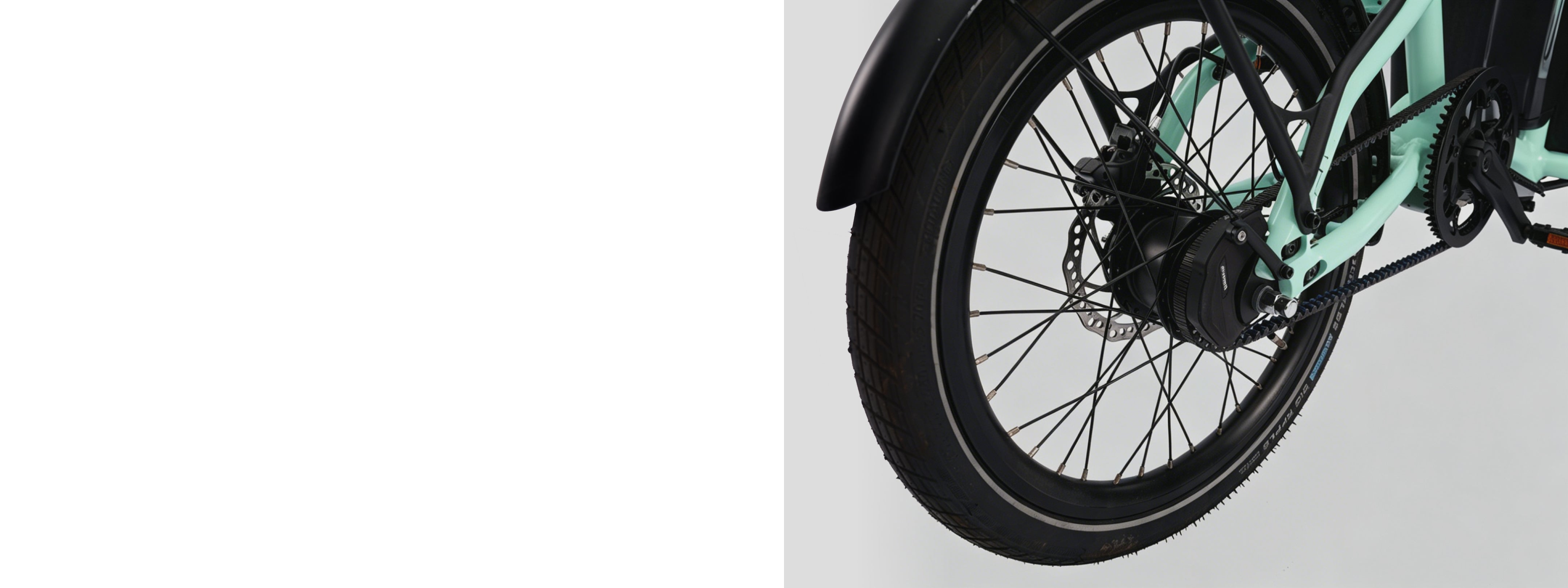

Reliable Power for Daily Cargo Use
The Ananda 350W rear hub motor provides consistent electric assist for grocery runs, school pickups, and daily errands with a combined load of up to 180kg.
Practical Daily Range

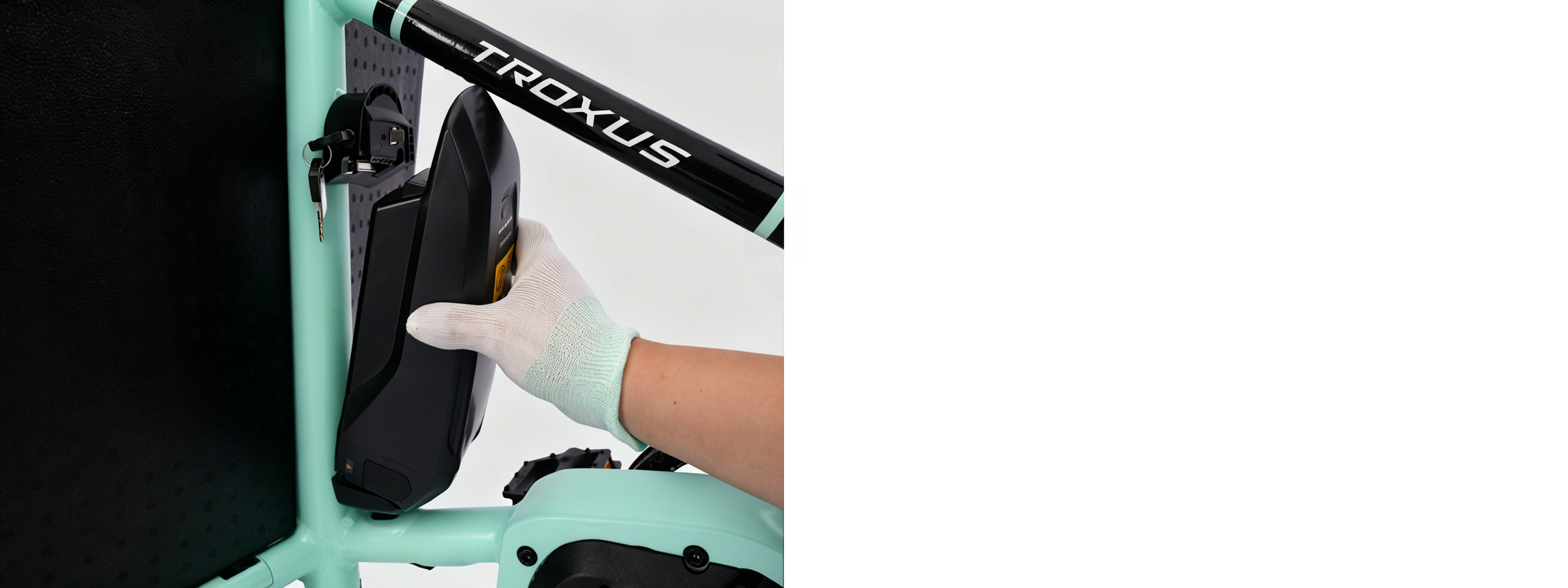

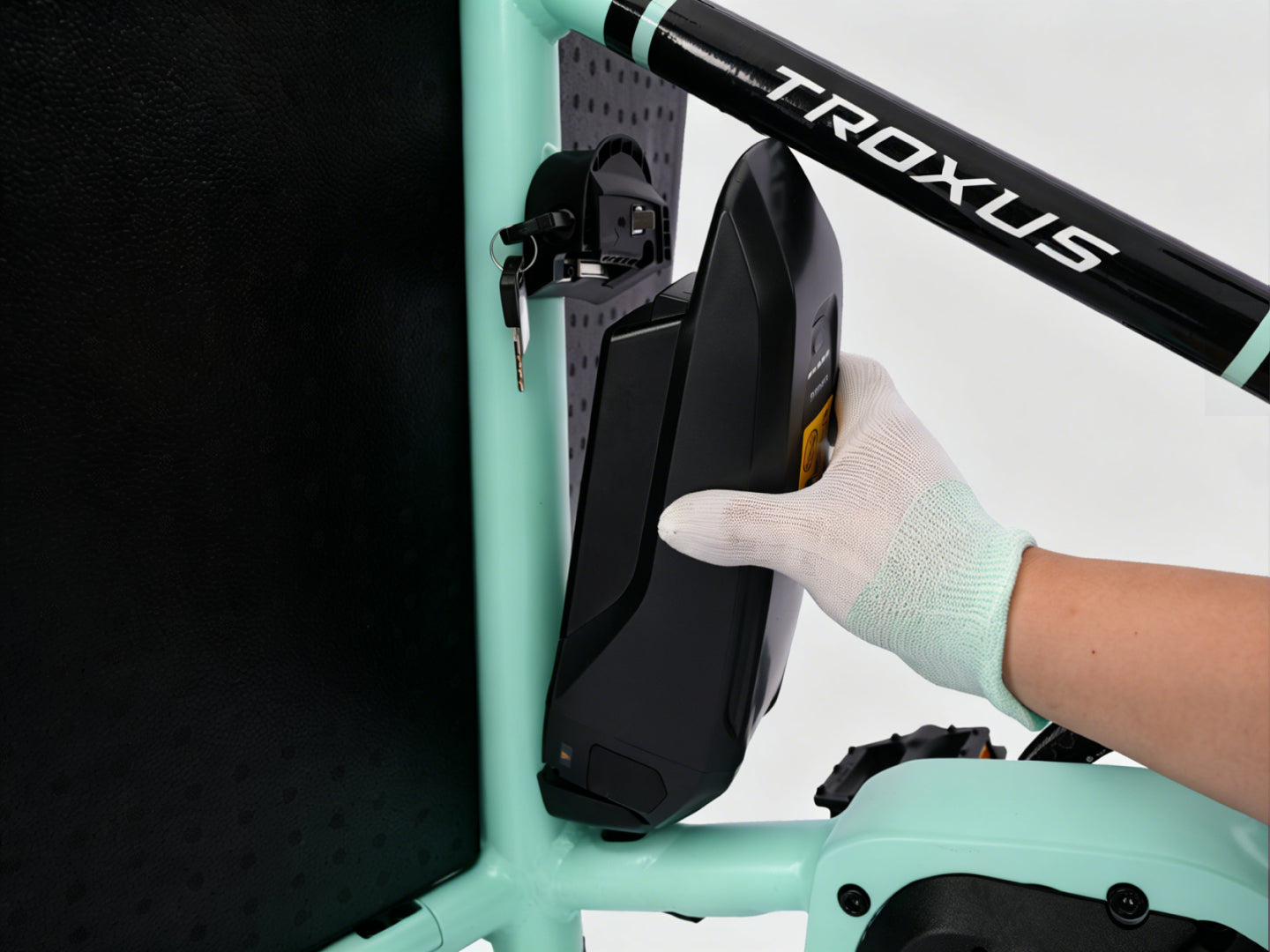

The 36V/13Ah battery delivers reliable range for typical urban daily use, supporting multiple short-to-medium distance cargo trips between charges.
Simple and Durable Drivetrain
The Shimano 7-speed chain drivetrain offers straightforward, proven shifting performance for everyday cargo riders who prioritize reliability and ease of maintenance.
Stable Double A-Arm Suspension
The forged aluminum double A-arm front suspension maintains ride comfort and handling stability when carrying cargo or passengers.
Hydraulic Disc Brakes
Linhao hydraulic disc brakes provide confident, consistent stopping power for safe cargo and family riding in urban conditions.
CST Cargo Tires
18" front and 20" rear CST tires offer stable, durable performance for urban cargo use.
Velofox TFT Display
Clear TFT display provides riding data and battery status in an easy-to-read format.

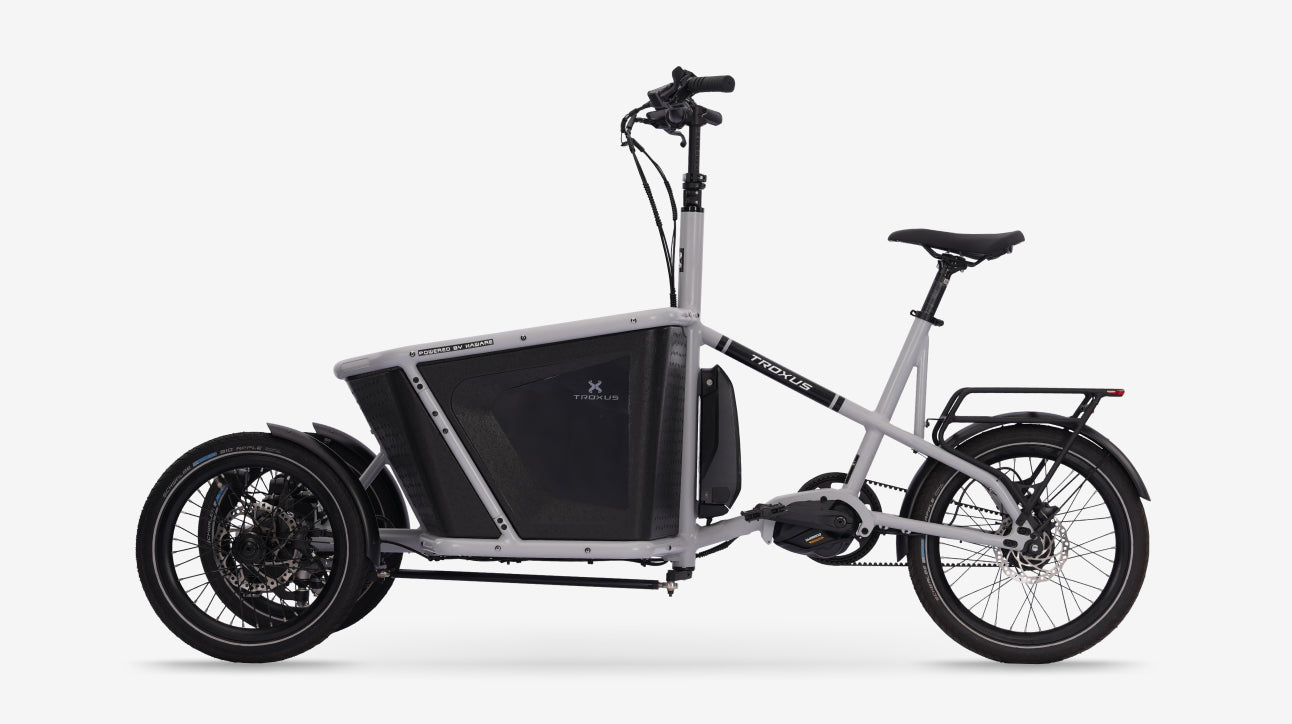

Carvo 04

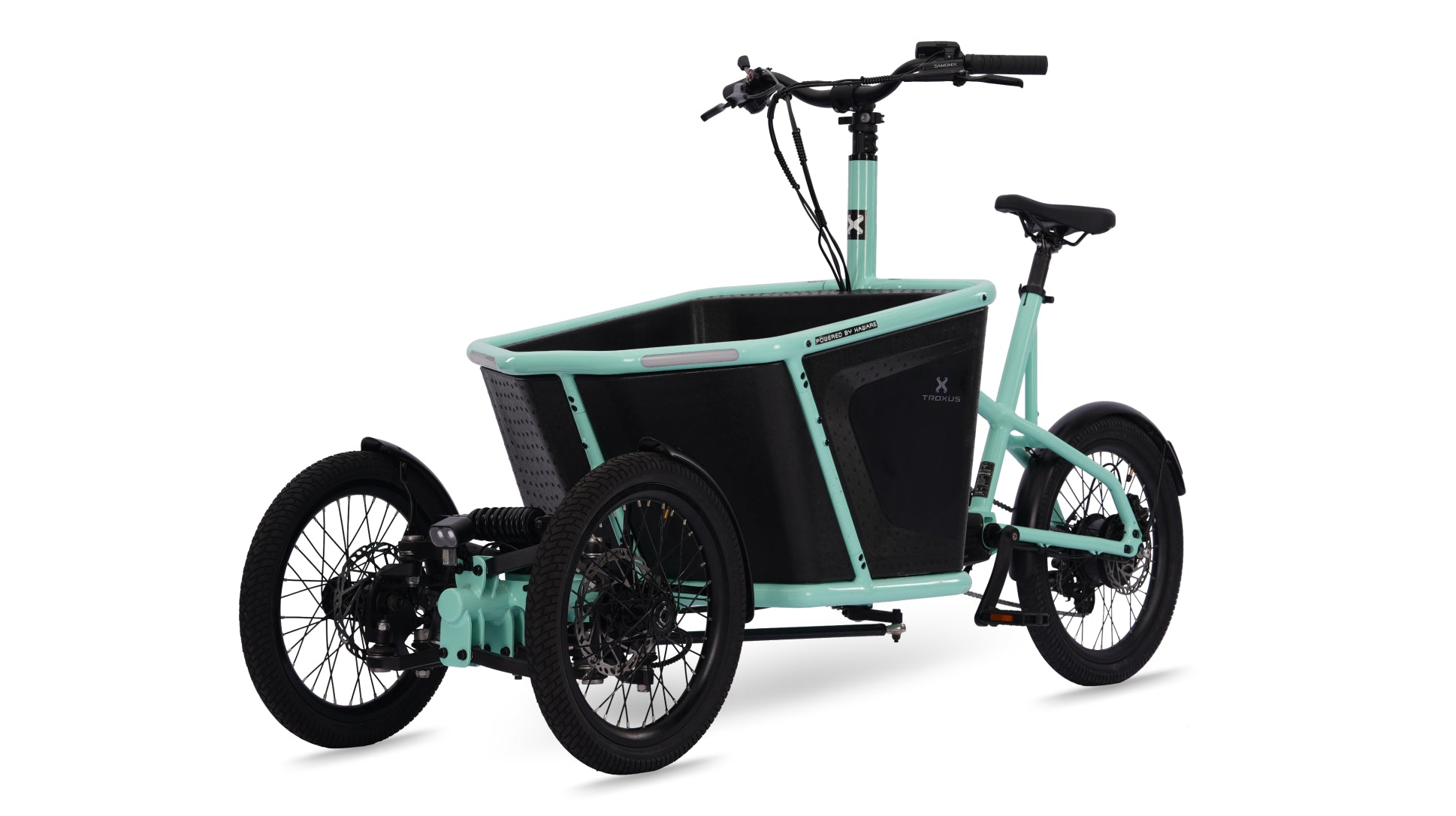

Carvo 04 SE
Shimano EP6, 250W (nominal), 85Nm Mid-Drive
Ananda 350W Rear Hub Motor
504Wh Shimano Integrated Battery
36V/13Ah (468Wh)
Shimano SC-EN610
Velofox TFT Display
Torque Sensor (Shimano)
Cadence Sensor
0~4 Level Pedal Assist
0~4 Level Pedal Assist
Shimano standard charger
Standard charger (included)
25 km/h
25 km/h
Rider: 100kg / Cargo: 80kg
Rider: 100kg / Cargo: 80kg
47kg (without accessories)
47kg (without accessories)
6061 Aluminum Alloy
6061 Aluminum Alloy
Aluminum Forged Double A-Arm Front Suspension
Aluminum Forged Double A-Arm Front Suspension
N/A
N/A

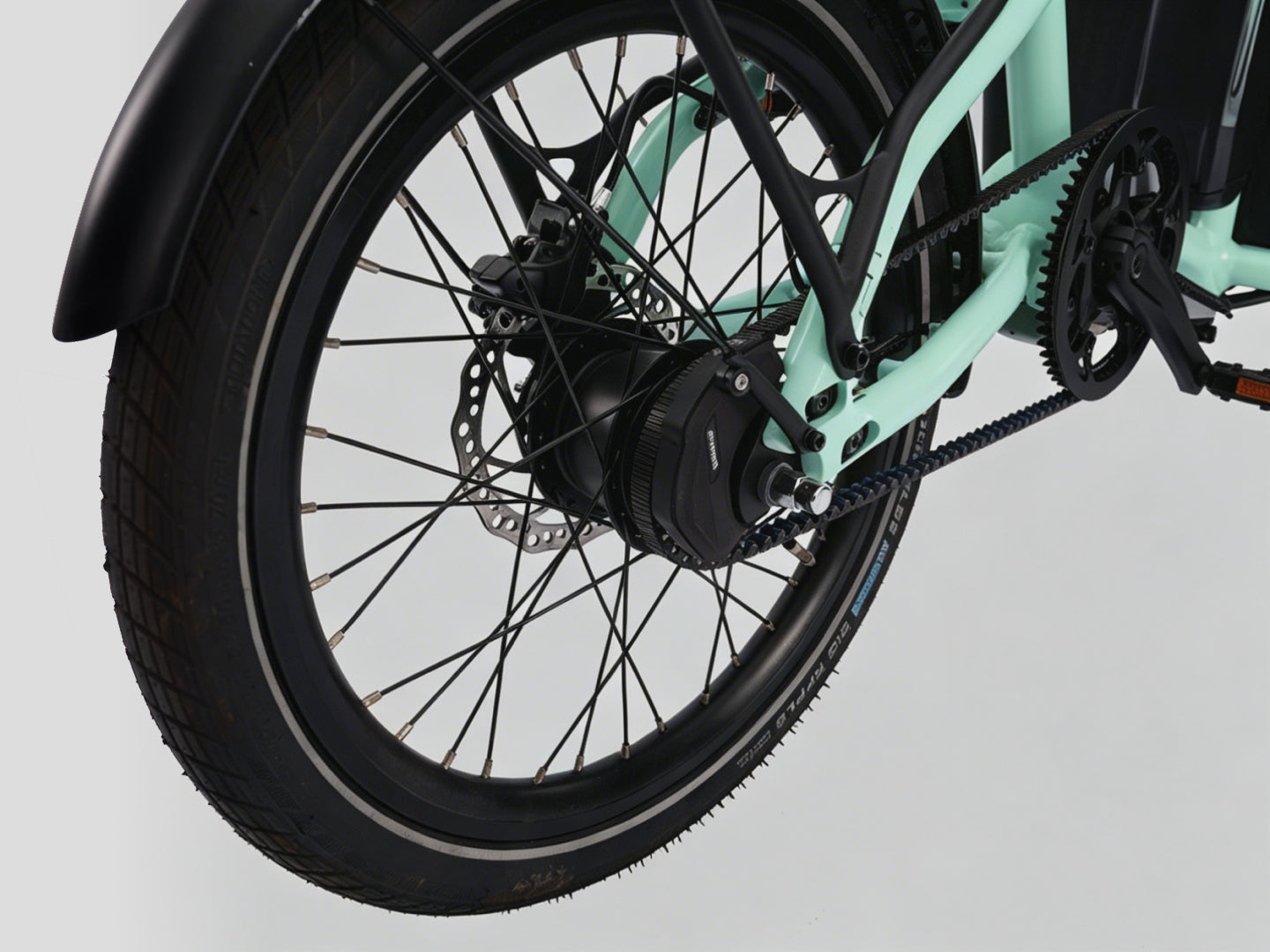

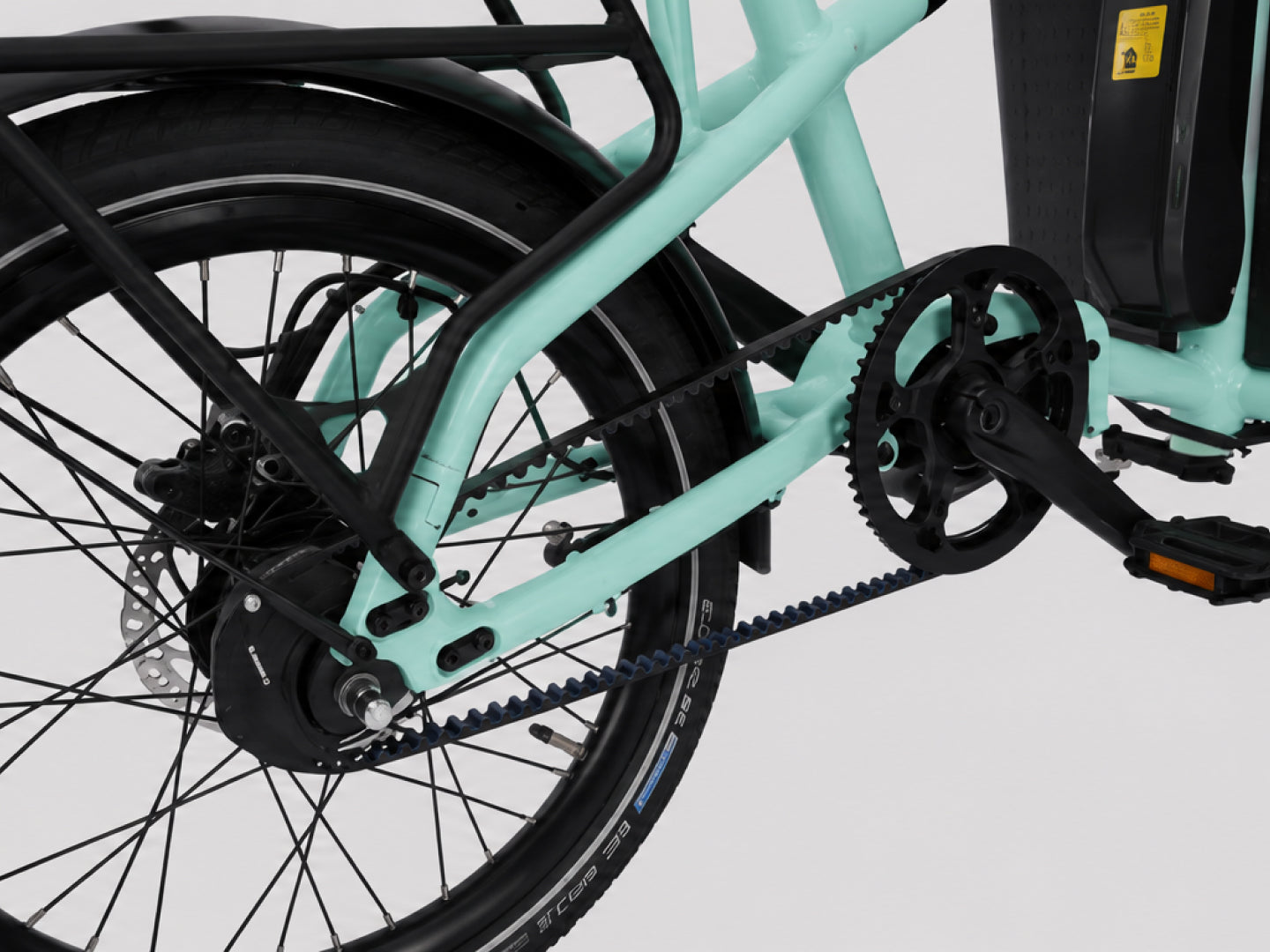

Shimano Nexus Di2 Auto-Shift + Gates CDX Belt
Shimano 7-Speed + Chain
Tektro HD-545 Hydraulic Disc Brake
Linhao Hydraulic Disc Brake
Schwalbe Big Apple F:18" R:20"
CST F:18" R:20"
Satori Easy-Upet
Satori Easy-Upet

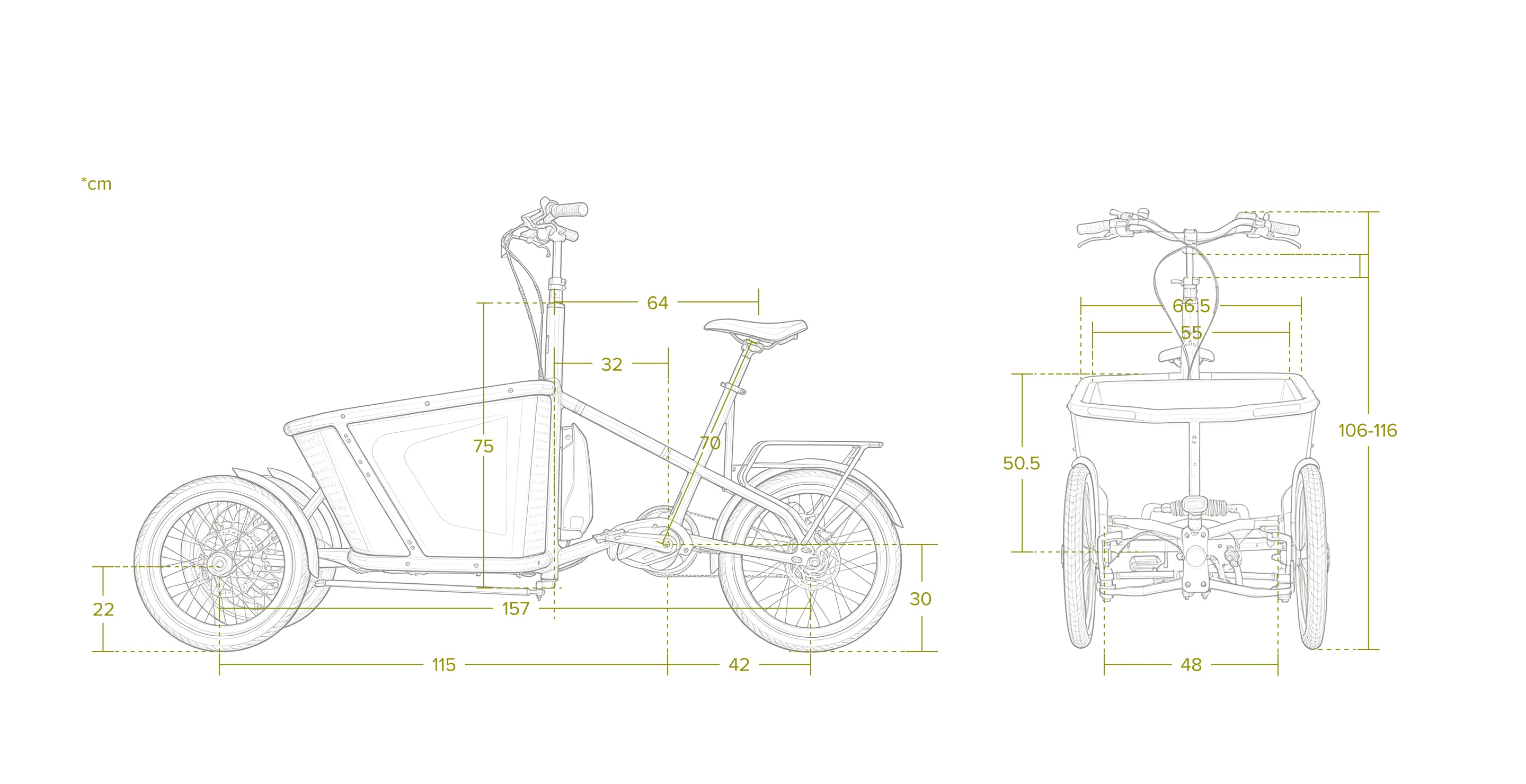

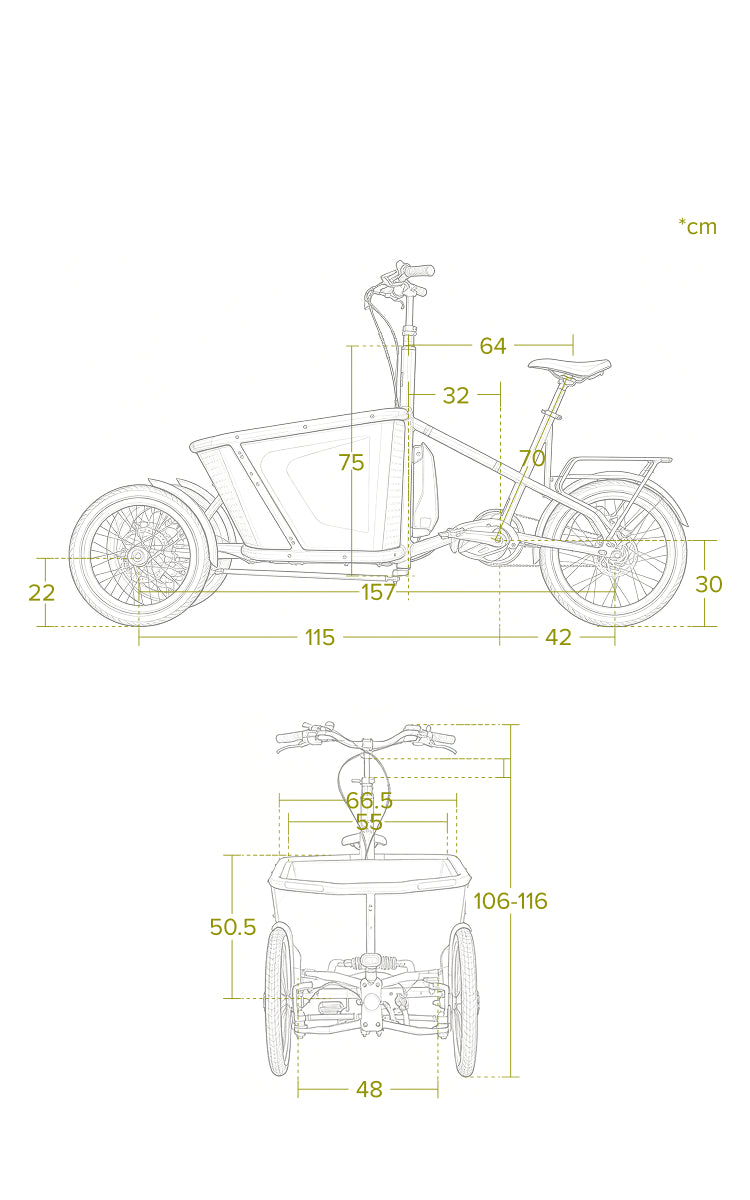

620mm × 640mm × 460mm
620mm × 640mm × 460mm
EPP
EPP
DIN79010
DIN79010
